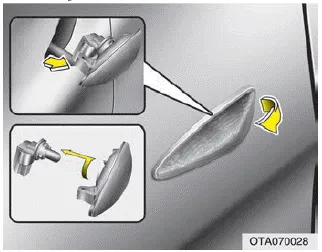

Kia Soul (SK3): Light bulbs / Side repeater lamp (Bulb type) bulb replacement
1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the body of the vehicle.
If the side repeater lamp (LED), does not operate, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
1. Open the tailgate. 2. Loosen the lamp assembly retaining screws with a screwdriver. 3. Remove the rear combination lamp assembly from the body of the vehicle.
