Kia Soul (SK3): If you have a flat tire (with spare tire) / Jack label

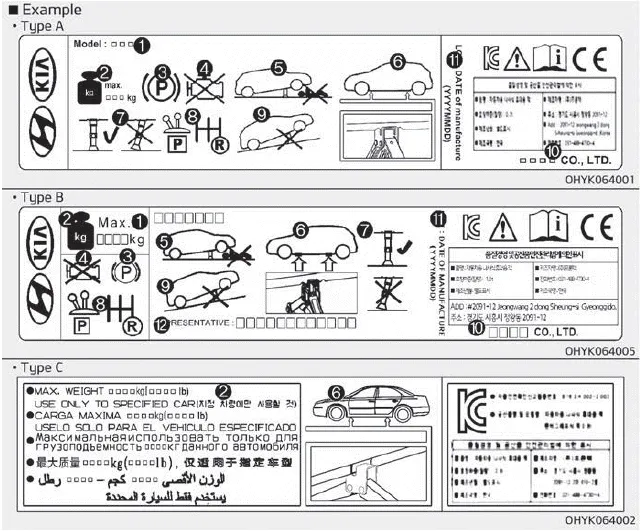

❈ The actual Jack label in the vehicle may differ from the illustration. For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical under the
lifting point.
8. Shift into Reverse gear on vehicles with manual transmission.
9. The jack should be used on firm level ground.
10. Jack manufacturer
11. Production date
12. Representative company and address

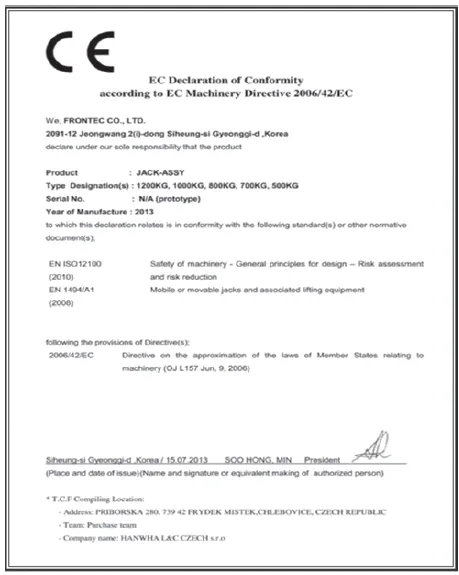

EC Declaration of Conformity for jack
1. Park on a level surface and apply the parking brake firmly. 2. Move the shift lever into R (Reverse) with Manual Transmission or P (Park) with Automatic Transmission/ Dual Clutch Transmission/ Intelligent Variable Transmission.
Please read the instructions before using the Tire Mobility Kit. 1. Sealant bottle 2. Compressor The Tire Mobility Kit is a temporary fix to the tire and we recommend that the tire inspected by an authorized Kia dealer as soon as possible.
Other information:
Kia Soul (SK3) 2020-2025 Owners Manual: Position lamp/DRL/Front turn signal lamp bulb replacement (Type A, B)
1. Open the hood. 2. Remove the bulb socket-connector by turning it counterclockwise. 3. Remove the bulb from the lamp assembly. 4. Install a new bulb. 5. Connect the bulb socket-connector. Headlamp bulb WARNING Halogen bulbs Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.
Kia Soul (SK3) 2020-2025 Owners Manual: Headlamp and front fog lamp aiming
Headlamp aiming Front fog lamp aiming 1. Horizontal aiming 2. Vertical aiming 3. Low vertical aiming 4. High vertical aiming 5. Vertical aiming (Front) 6. Vertical aiming (Low) 1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
