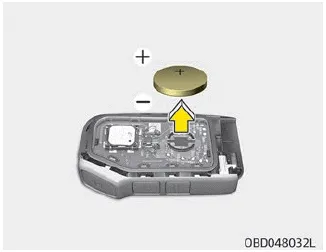

The transmitter or smart key uses a 3 volt lithium battery which will normally last for several years. When replacement is necessary, use the following procedure.
1. Insert a slim tool into the slot and gently pry open the transmitter or smart key cover.
2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.
3. Install the battery in the reverse order of removal.
For transmitter or smart key replacement, Kia recommends to visit an authorized Kia dealer/service partner.
CAUTION
CAUTION
An inappropriately disposed battery can be harmful to the environment and human health.
Dispose the battery according to your local law(s) or regulation.
NOTICE The transmitter will not work if any of the following occurs: The ignition key is in the ignition switch. You exceed the operating distance limit (about 10 m [30 feet]).
With a smart key, you can lock or unlock a door and even start the engine without inserting the key. The functions of buttons on a smart key are similar to the folding key.
1. Turn the ignition switch and all other switches off. 2. Open the fuse panel cover. 3. Pull the suspected fuse straight out. Use the removal tool provided in the main fuse box in the engine compartment. 4. Check the removed fuse; replace it if it is blown.
1. Open the tailgate. 2. Remove the service cover. (Loosen the lamp assembly retaining screws and remove the lamp assembly from the body of the vehicle for back-up lamp) 3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
