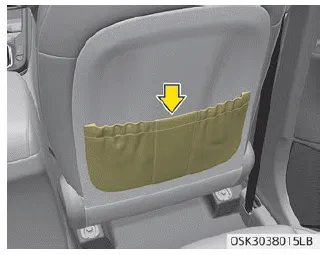

The seatback pocket is provided on the back of the front passenger’s seatback.
WARNING
Seatback pockets
Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure vehicle occupants.
To remove the headrest: 1. Recline the seatback (2) with the recline lever or switch (1). 2. Raise headrest as far as it can go. 3. Press the headrest release button (3) while pulling the headrest up (4).
Folding the rear seat The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle. WARNING The purpose of the fold-down rear seatbacks is to allow you to carry longer objects that could not be accommodated in the cargo area.
Check the fluid level in the reservoir periodically. The fluid level should be between MAX and MIN marks on the side of the reservoir. Before removing the reservoir cap and adding brake/clutch fluid, clean the area around the reservoir cap thoroughly to prevent brake/clutch fluid contamination.
Headlamp aiming Front fog lamp aiming 1. Horizontal aiming 2. Vertical aiming 3. Low vertical aiming 4. High vertical aiming 5. Vertical aiming (Front) 6. Vertical aiming (Low) 1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
