Kia Soul: Headrest (for front seat) / Removal and installation

Kia Soul (SK3) 2020-2023 Owners Manual / Safety features of your vehicle / Seat / Headrest (for front seat) / Removal and installation

Kia Soul. Removal and installation

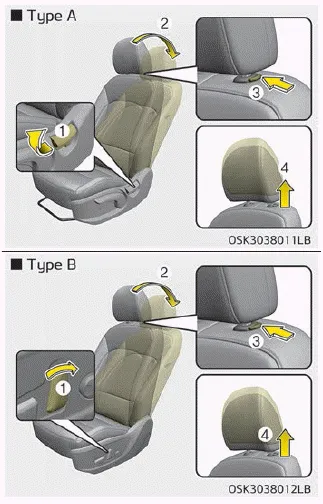

To remove the headrest:

1. Recline the seatback (2) with the recline lever or switch (1).

2. Raise headrest as far as it can go.

3. Press the headrest release button (3) while pulling the headrest up (4).

WARNING

NEVER allow anyone to ride in a seat with the headrest removed.

Kia Soul. Removal and installation

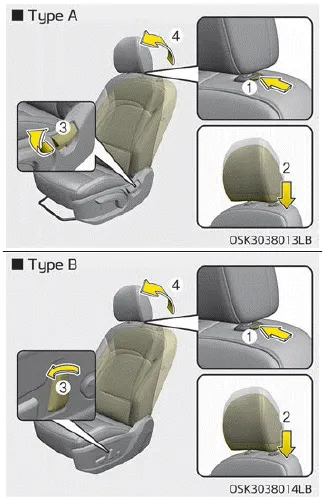

To reinstall the headrest:

1. Put the headrest poles (2) into the holes while pressing the release button (1).

2. Recline the seatback (4) with the recline lever or switch (3).

3. Adjust the headrest to the appropriate height.

WARNING

Always make sure the headrest locks into position after reinstalling and adjusting it properly.
