Kia Soul: Child restraint system (CRS) / ISOFIX anchorage and top-tether anchorage for children

The ISOFIX system holds a Child Restraint System during driving and in an accident. This system is designed to make installation of the Child Restraint System easier and reduce the possibility of improperly installing your Child Restraint System. The ISOFIX system uses anchors in the vehicle and attachments on the Child Restraint System. The ISOFIX system eliminates the need to use seat belts to secure the Child Restraint System to the rear seats. ISOFIX anchorages are metal bars built into the vehicle. There are two lower anchors for each ISOFIX seating position that will accommodate a Child Restraint System with lower attachments.

To use the ISOFIX system in your vehicle, you must have a Child Restraint System with ISOFIX attachments. The Child Restraint System manufacturer will provide you with instructions on how to use the Child Restraint System with its attachments for the ISOFIX anchorages.

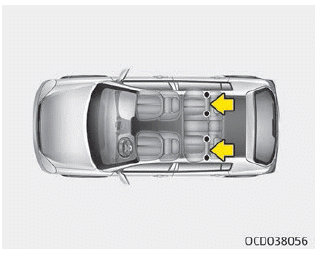

ISOFIX anchorages have been provided in the left and right outboard rear seating positions. Their locations are shown in the illustration.

WARNING

Do not attempt to install a Child Restraint System using ISOFIX anchorages in the rear center seating position. There are no ISOFIX anchorages provided for this seat. Using the outboard seat anchorages, for the CRS installation on the rear center seating position, can damage the anchorages.

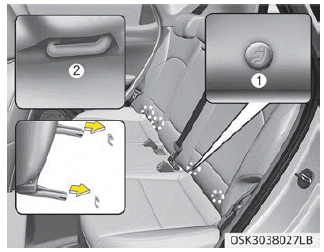

ISOFIX(i-Size) anchorages are located between the seatback and the seat cushion of the rear seat left and right outboard seating positions, indicated by the symbols.

❈ 1. : ISOFIX (i-Size) Anchor Position Indicator (Type A- ,Type B- )

2. : ISOFIX (i-Size) Anchor

Securing a Child Restraint System with the “ISOFIX(i-Size) Anchorage System”

To install a ISOFIX(i-Size)-compatible Child Restraint System in either of the rear outboard seating positions:

1. Move the seat belt buckle away from the ISOFIX(i-Size) anchorages.

2. Move any other objects away from the anchorages that could prevent a secure connection between the Child Restraint System and the ISOFIX( i-Size) anchorages.

3. Place the Child Restraint System on the vehicle seat, then attach the seat to the ISOFIX(i-Size) anchorages according to the instructions provided by the Child Restraint System manufacturer.

4. Follow the instructions of the Child Restraint System's manufacturer for proper installation and connection of the ISOFIX(i-Size) attachments on the Child Restraint System to the ISOFIX(i-Size) anchorages.

WARNING

Take the following precautions when using the ISOFIX(i-Size) system:

• Read and follow all installation instructions provided with your Child Restraint System.
• To prevent the child from reaching and taking hold of unretracted seat belts, buckle all unused rear seat belts and retract the seat belt webbing behind the child. Children can be strangled if a shoulder belt becomes wrapped around their neck and the seat belt tightens.
• NEVER attach more than one Child Restraint System to a single anchorage. This could cause the anchor or attachment to come loose or break.
• Always have the ISOFIX(i- Size) system inspected by your dealer after an accident. An accident can damage the ISOFIX(i-Size) system and may not properly secure the Child Restraint System.
