When not using the ISOFIX system, all Child Restraint Systems must be secured to a rear seat with the lap part of a lap/shoulder belt.

Kia Soul. Securing a Child Restraint System with a lap/shoulder belt

Installing a Child Restraint System with a lap/shoulder belt

To install a Child Restraint System on the rear seats, do the following:

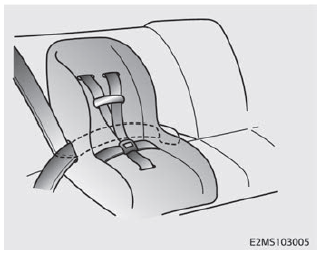

1. Place the Child Restraint System on a rear seat and route the lap/ shoulder belt around or through the Child Restraint System, following the Child Restraint System manufacturer’s instructions. Make sure the seat belt webbing is not twisted.

Kia Soul. Securing a Child Restraint System with a lap/shoulder belt

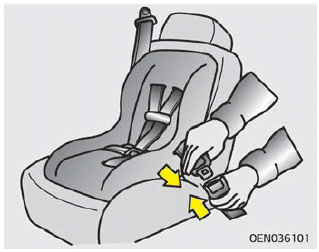

2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct “click” sound. Position the release button so that it is easy to access in case of an emergency.

Kia Soul. Securing a Child Restraint System with a lap/shoulder belt

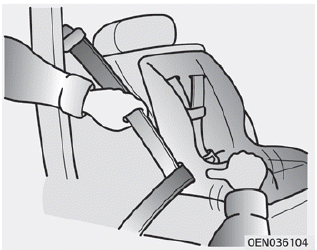

3. Remove as much slack from the belt as possible by pushing down on the Child Restraint System while feeding the shoulder belt back into the retractor.

4. Push and pull on the Child Restraint System to confirm that the seat belt is holding it firmly in place.

If your Child Restraint System manufacturer recommends the use of a toptether with the lap/shoulder belt.

To remove the Child Restraint System, press the release button on the buckle and then pull the lap/shoulder belt out of the Child Restraint System and allow the seat belt to retract fully.

Securing a Child Restraint System seat with “Top-tether Anchorage” system
Child restraint system top tether anchorages are located on the back of the rear seatbacks. 1. Route the Child Restraint System top-tether strap over the seatback. Placing the top tether strap, please ...

Suitability of each seating position for belted & ISOFIX Child Restraint Systems according to UN regulations
Yes : Suitable for fitment of the designated category of CRS No : Not suitable for fitment of the designated category of CRS “-” : Not applicable The table is based on LHD vehicle. Except for the ...
