Kia Soul (SK3): Fuses / Engine compartment fuse replacement

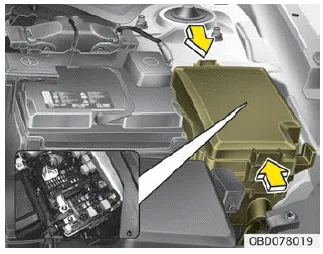

1. Turn the ignition switch and all other switches off.

2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine room fuse box. Upon removal, securely insert reserve fuse of equal quantity.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.

If not, electrical failures may occur from water contact.

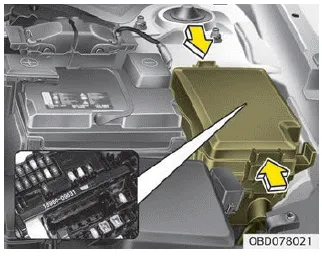

Multi fuse

If the multi fuse is blown, it must be removed as follows:

1. Disconnect the negative battery cable.

2. Remove the nuts shown in the picture above.

3. Replace the fuse with a new one of the same rating.

4. Reinstall in the reverse order of removal.

NOTICE

If the multi fuse is blown, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

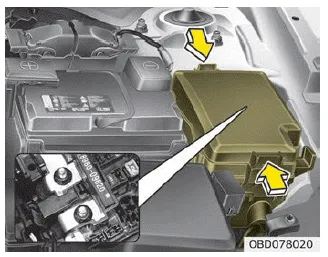

Main fuse

If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the nuts shown in the picture above.

4. Replace the fuse with a new one of the same rating.

5. Reinstall in the reverse order of removal

If the main fuse is blown, even though the engine compartment panel fuse and inner fuse are not blown, if the electrical system is not operated, the main fuse may be blown. The main fuse is connected with other parts and system. Contact a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

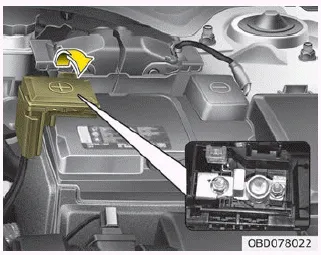

Battery fuse

If the battery fuse is blown, it must be removed as follows:

1. Disconnect the negative battery cable.

2. Remove the nuts shown in the picture above.

3. Replace the fuse with a new one of the same rating.

4. Reinstall in the reverse order of removal.

NOTICE

If the battery fuse is blown, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

CAUTION

Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
