Kia Soul (SK3): Fuses / Fuse/relay panel description

Kia Soul (SK3) 2020-2025 Owners Manual / Maintenance / Fuses / Fuse/relay panel description

Kia Soul. Fuse/relay panel description

Kia Soul. Fuse/relay panel description

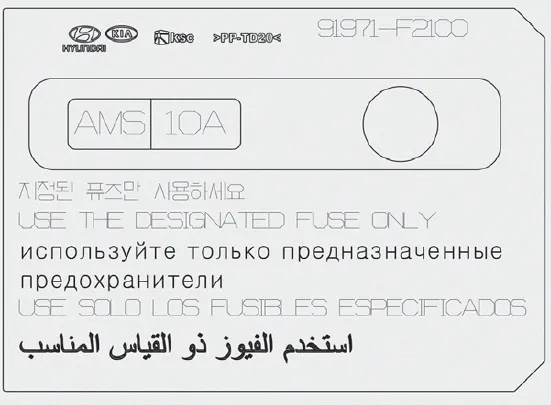

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

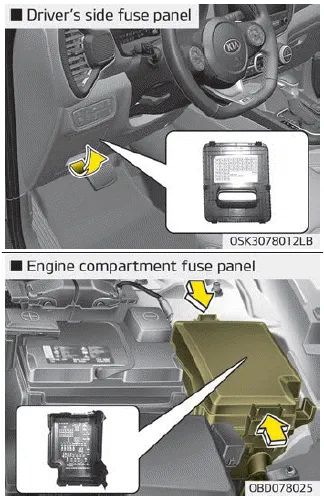

Driver’s side fuse panel

Kia Soul. Fuse/relay panel description

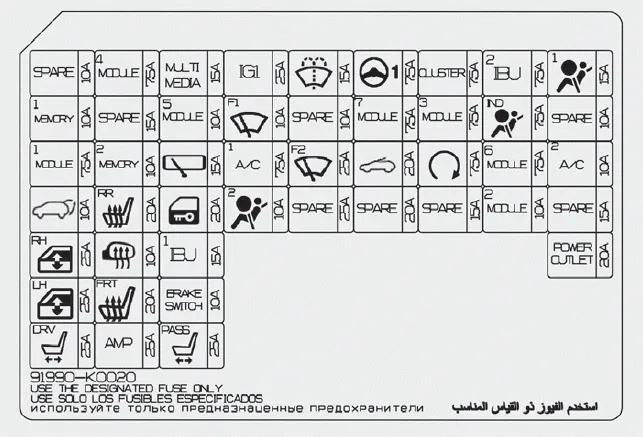

Instrument panel (Driver’s side fuse panel)

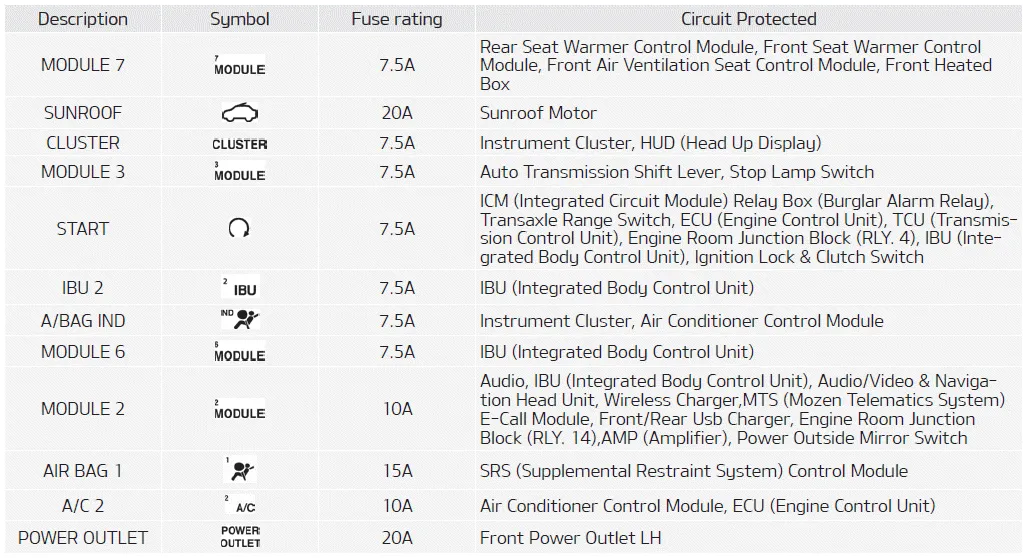

Kia Soul. Fuse/relay panel description

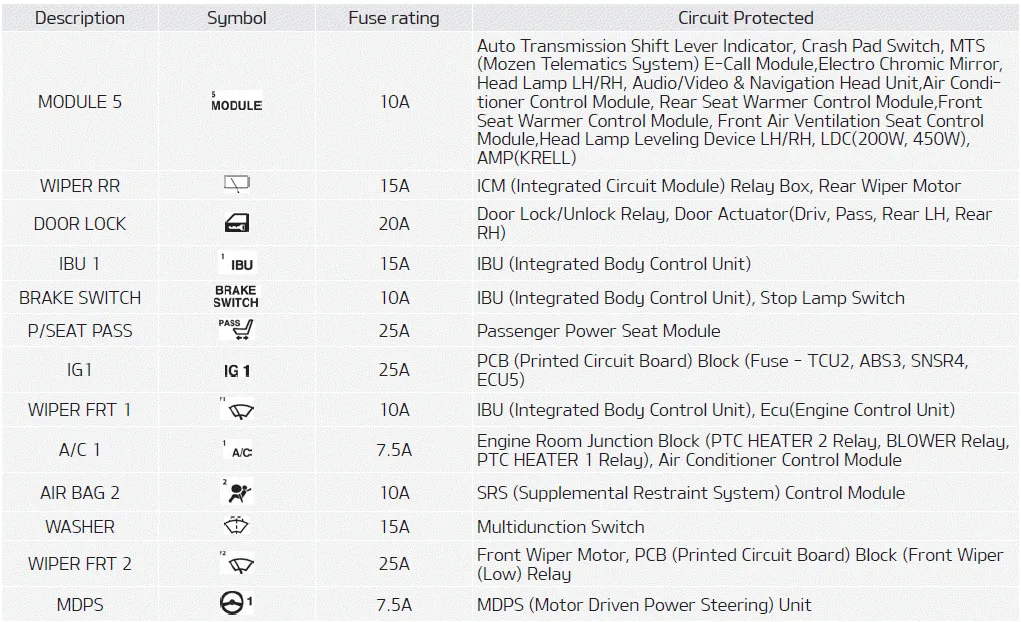

Kia Soul. Fuse/relay panel description

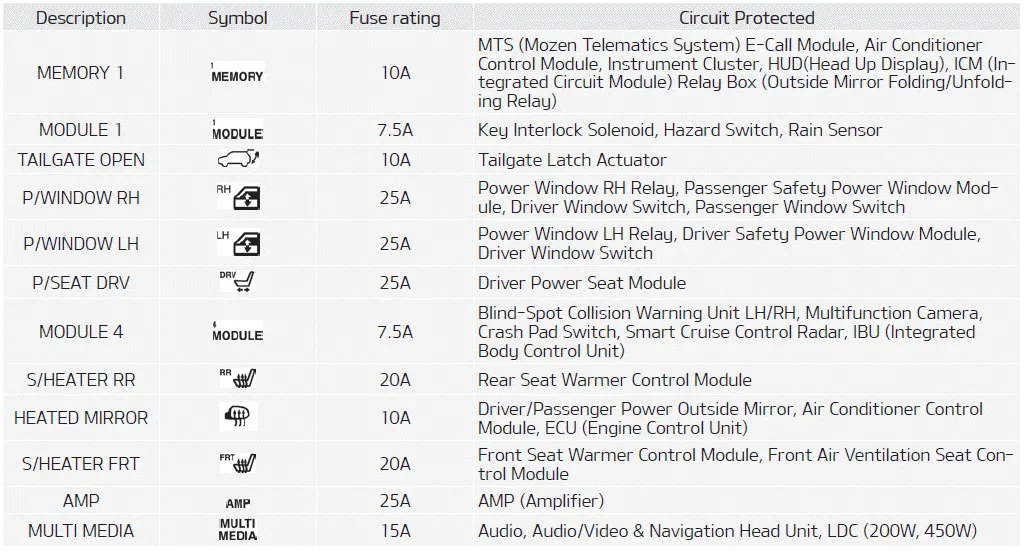

Kia Soul. Fuse/relay panel description

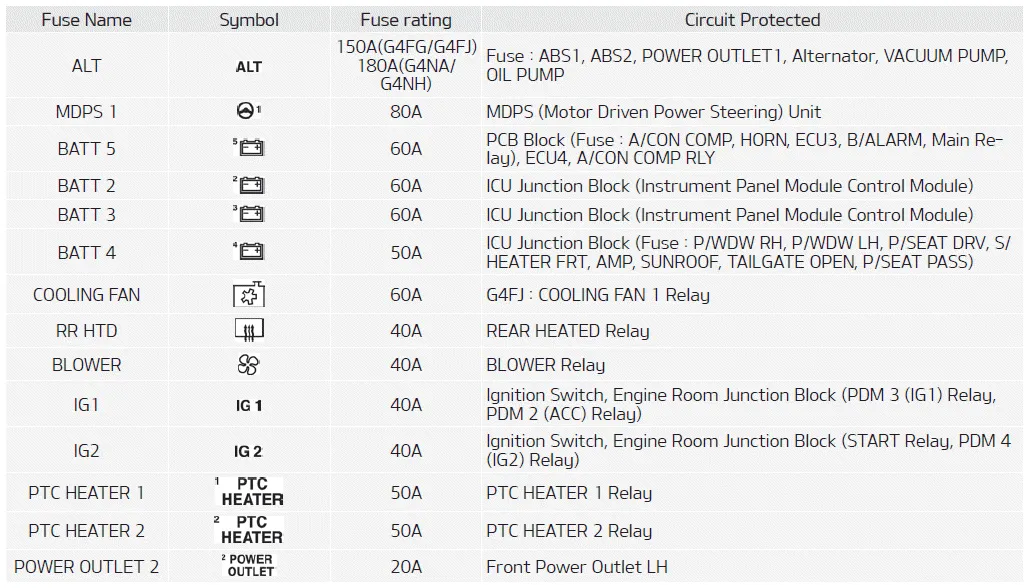

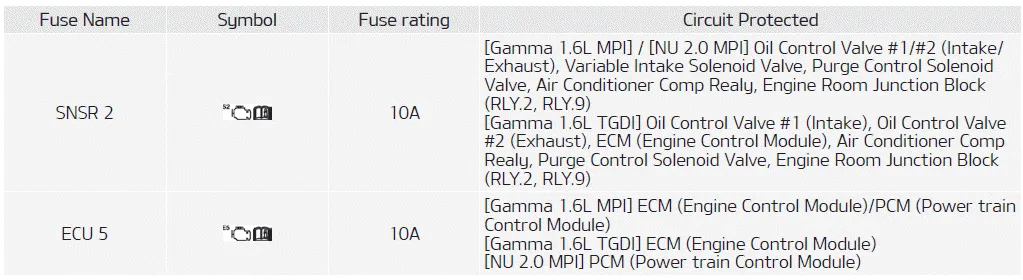

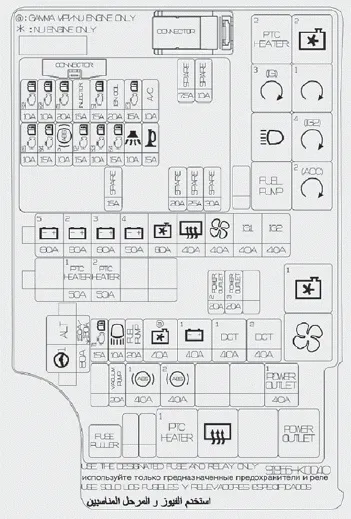

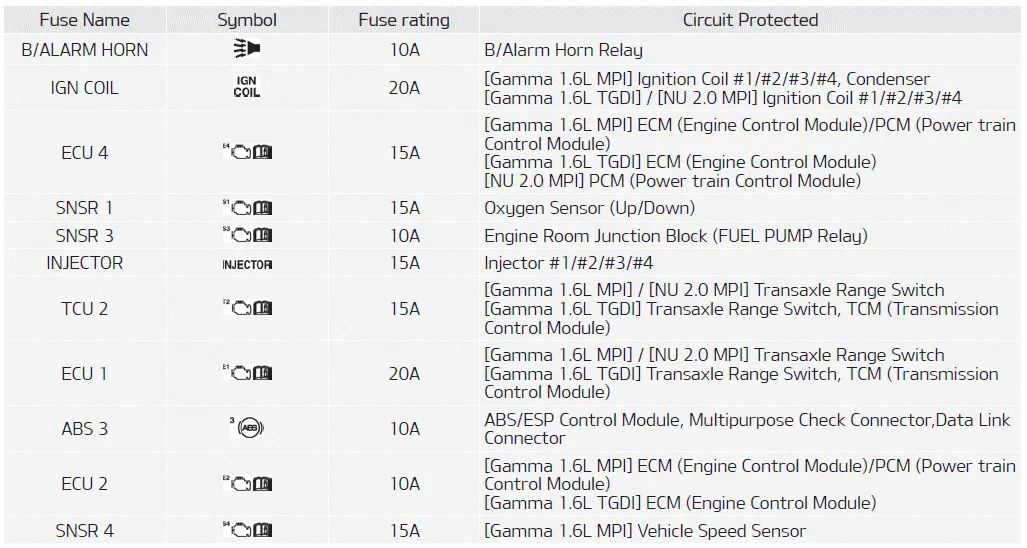

Engine compartment fuse panel

Kia Soul. Fuse/relay panel description

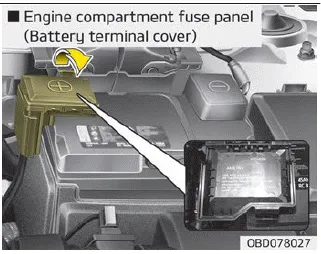

Engine compartment fuse panel (Battery terminal cover)

Kia Soul. Fuse/relay panel description

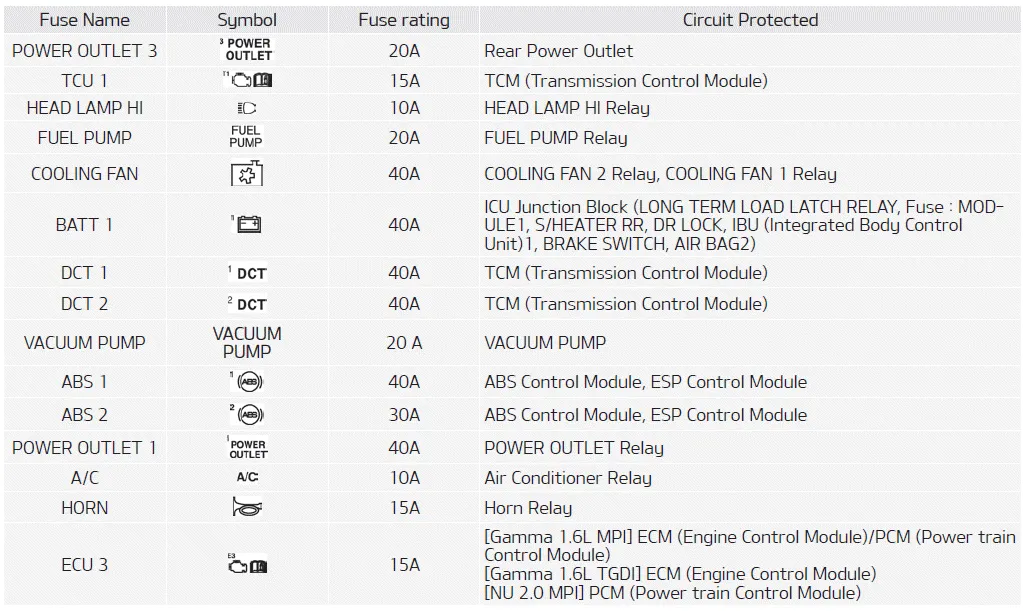

Engine room compartment fuse panel

Kia Soul. Fuse/relay panel description

Kia Soul. Fuse/relay panel description

Kia Soul. Fuse/relay panel description

Kia Soul. Fuse/relay panel description

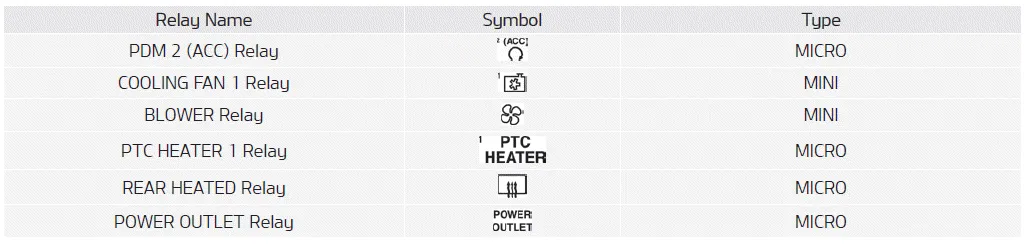

Relay

Kia Soul. Fuse/relay panel description

Kia Soul. Fuse/relay panel description

    1. Turn the ignition switch and all other switches off. 2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine room fuse box.
