Kia Soul (SK3): Light bulbs / Front fog lamp aiming

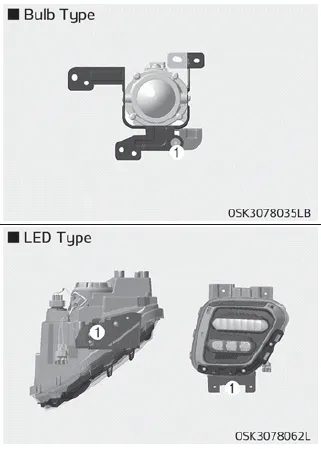

To aim the front fog lamp up or down, turn the driver clockwise or counterclockwise.

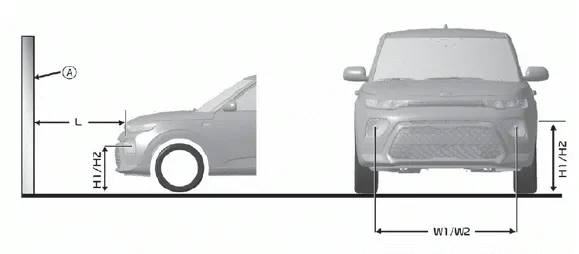

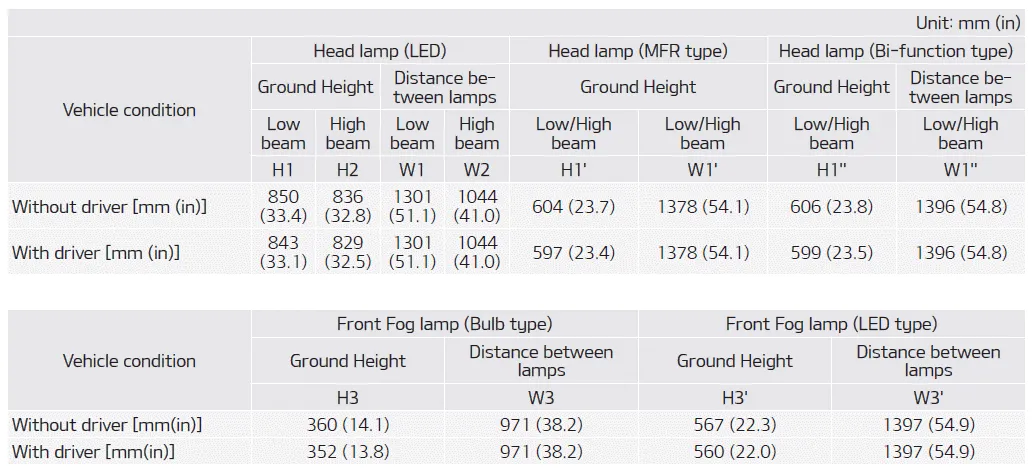

Aiming point (Headlamp type A)

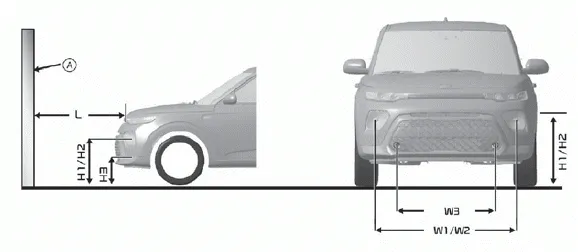

Aiming point (Headlamp type B)

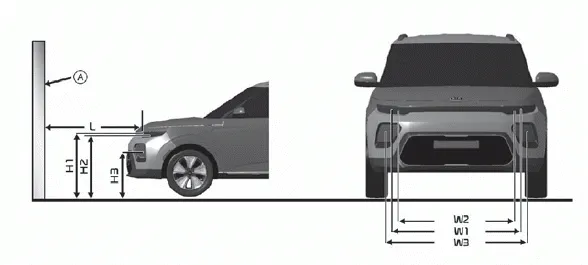

Aiming point (Headlamp type C)

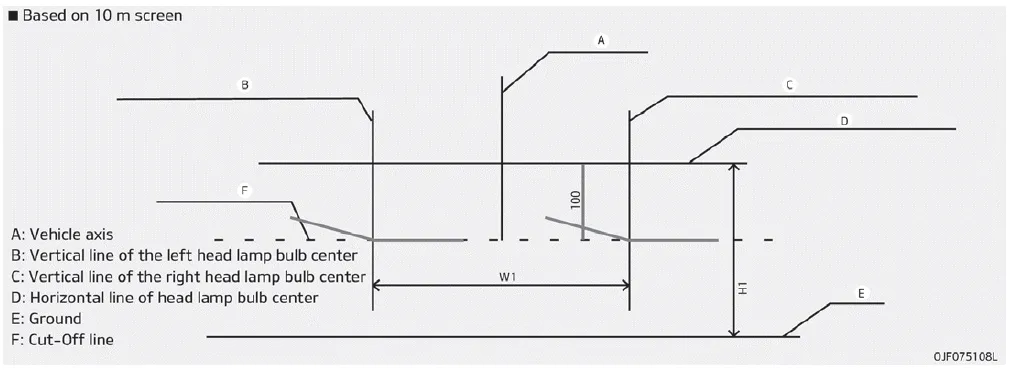

Head lamp low beam (LHD Vehicle)

1. Turn the low beam on without driver aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

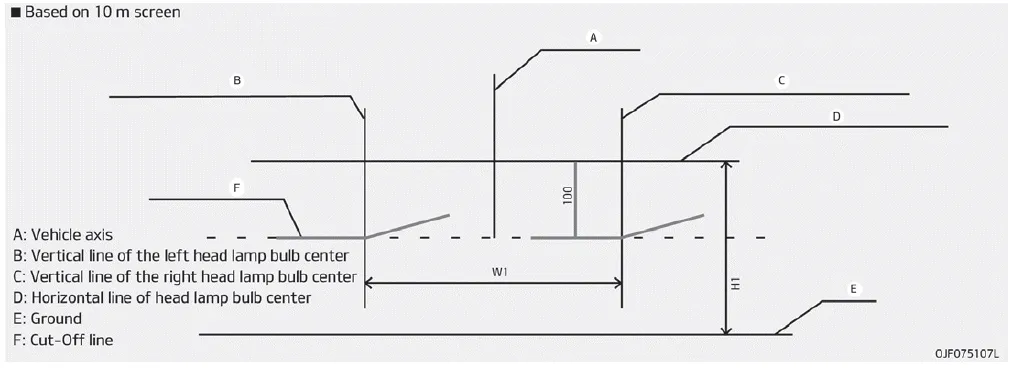

Head lamp low beam (RHD Vehicle)

1. Turn the low beam on without driver aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

Front fog lamp

1. Turn the front fog lamp on without the driver aboard.

2. The cut-off line should be projected in the allowable range (shaded region).
