Kia Soul (SK3): Features of your vehicle / Interior light
CAUTION
Do not use the interior lights for extended periods when the engine is not running.
It may cause battery discharge.
WARNING
Do not use the interior lights when driving in the dark. Accidents could happen because the view may be obscured by interior lights.

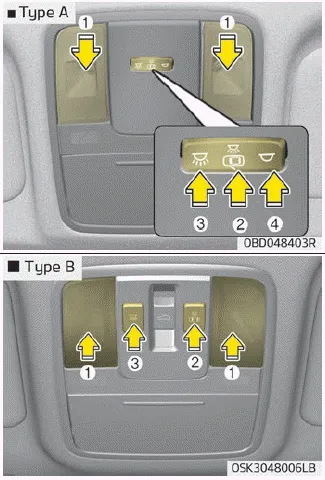

Map lamp
- (1) : Press the lamps to turn the front map lamps on and off.
(2) :
- The map lamp and room lamp comes on when a door is opened. The lamps go out after approximately 30 seconds.
- The map lamp and room lamp comes on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).
NOTICE
The DOOR mode and ROOM mode can not be selected at a time.
Front Map Lamp:
(3): Press this switch to turn
the front map lamps on.
(4): Press this switch to turn
the front map lamps off.
Room lamp, Luggage room lamp

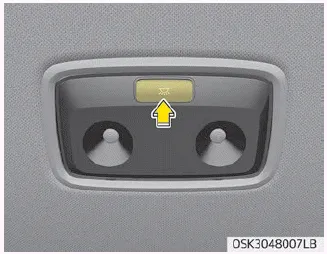

Room lamp
•
: The light stays on at all times.

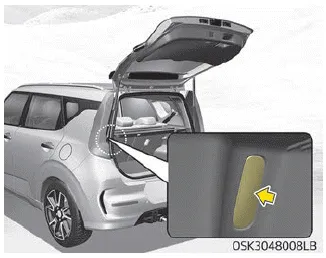

Luggage room lamp
The luggage room lamp comes on when the tailgate is opened.
CAUTION
The luggage room lamp comes on as long as the tailgate opens. To prevent unnecessary charging system drain, close the tailgate securely after using the luggage room.
Vanity mirror lamp, Glove box lamp
Push the switch to turn the light on or off.
•
: The lamp will turn on if this
button is pressed. •
: The lamp will
turn on if this button is pressed.
CAUTION
Vanity mirror lamp
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is closed without the lamp off, it may discharge the battery or damage the sunvisor.

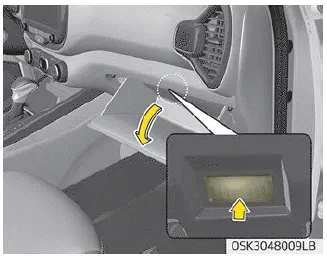

Glove box lamp
The glove box lamp comes on when the glove box is opened.
CAUTION
To prevent unnecessary charging system drain, close the glove box securely after using the glove box.
The heated washer nozzle function defreeze the washer nozzles in freezing weather. The heated washer nozzle will turn on and off automatically when the ignition switch is in ON or when the engine is running in following conditions: - Turns ON when the outside temperature is below 5°C, and OFF when it is over 10°C.
CAUTION To prevent damage to the conductors bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.
