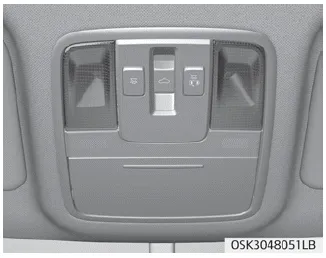

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console.
The sunroof can be operated for approximately 10 minutes after the engine start/stop button is turned to the ACC or LOCK position. However, if the front doors are opened, the sunroof cannot be opened even within the 10 minutes period.
NOTICE
CAUTION
NOTICE
The sunroof cannot slide when it is in the tilt position nor can it be tilted while in an open or slide position.
WARNING
Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.
WARNING
Opening the fuel filler door The fuel filler door must be opened from inside the vehicle by pulling up on the fuel filler door opener located on the front floor area on the driver’s seat.
To open the sunroof, push the sunroof control lever backward. To close the sunroof, push the sunroof control lever forward. To open the sunroof automatically: Pull the sunroof control lever backward to the second detent position and then release it.
1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake/clutch fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal 8. Engine oil dipstick 9. Radiator cap 10. Windshield washer fluid reservoir 1.
Please prepare bulbs with appropriate standards in case of emergencies (Refer to “Bulb wattage” on page 9-07 for further information). When changing bulbs and sorts, first turn off the engine at a safe place, firmly apply the side brake and take out the battery's negative (-) terminal.
