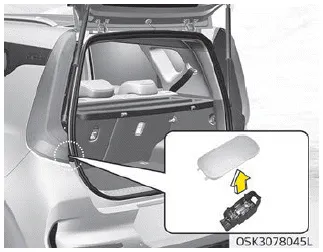

Kia Soul (SK3): Light bulbs / Tailgate room lamp replacement
1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap the lens into place.
CAUTION
Be careful not to dirty or damage the lens, lens tab, and plastic housings.
1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb in the socket.
Headlamp aiming Front fog lamp aiming 1. Horizontal aiming 2. Vertical aiming 3. Low vertical aiming 4. High vertical aiming 5. Vertical aiming (Front) 6.
Other information:
Kia Soul (SK3) 2020-2025 Owners Manual: Wheel alignment and tire balance
The wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. In most cases, you will not need to have your wheels aligned again. However, if you notice unusual tire wear or your vehicle pulling one way or the other, the alignment may need to be reset.
Kia Soul (SK3) 2020-2025 Owners Manual: Specifications & Consumer information
Dimensions.Engine Dimensions Engine Gross vehicle weight. Luggage volume. Bulb wattage Gross vehicle weight Luggage volume Min: Behind rear seat to upper edge of the seat back. Max: Behind front seat to roof. Bulb wattage Tires and wheels CAUTION When replacing tires, use the same size originally supplied with the vehicle.
