Kia Soul (SK3): Features of your vehicle / Transmission shift indicator. Dual clutch transmission shift indicator

Kia Soul (SK3) 2020-2025 Owners Manual / Features of your vehicle / Transmission shift indicator. Dual clutch transmission shift indicator

Automatic transmission shift indicator

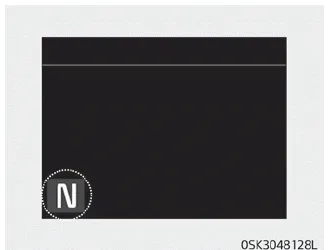

Kia Soul. Transmission shift indicator

This indicator displays which automatic transmission shift lever is selected.

  • Park : P
  • Reverse : R
  • Neutral : N
  • Drive : D
  • Sports Mode : 1, 2, 3, 4, 5, 6

Manual transmission shift indicator

Kia Soul. Transmission shift indicator

This indicator informs which gear is desired while driving to save fuel.

  • Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
  • Shifting down : ▼1, ▼2, ▼3, ▼4, ▼5

For example

Kia Soul. Transmission shift indicatorIndicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

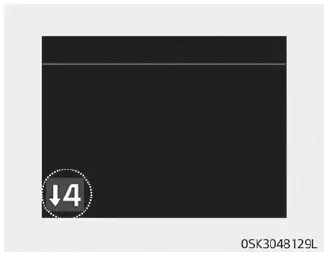

Kia Soul. Transmission shift indicatorIndicates that shifting down to the 4th gear is desired (currently the shift lever is in the 5th or 6th gear).

When the system is not working properly, the indicator is not displayed.

Dual clutch transmission shift indicator

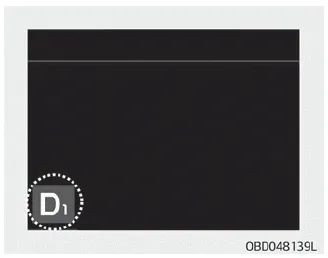

Kia Soul. Dual clutch transmission shift indicator

This indicator displays which shift lever is selected.

  • Park : P
  • Reverse : R
  • Neutral : N
  • Drive : D1, D2, D3, D4, D5, D6, D7
  • Sports mode: S1, S2, S3, S4, S5, S6, S7

    1. Tachometer 2. Speedometer 3. Engine coolant temperature gauge 4. Fuel gauge 5. Warning and indicator lights 6. LCD display Instrument cluster control Adjusting instrument cluster illumination WARNING Never adjust the instrument cluster while driving.

    LCD Display Control The LCD display modes can be changed by using the control buttons. 1. : MODE button for changing modes 2. / : MOVE switch for changing items 3.
