Kia Soul (SK3): Features of your vehicle / LCD display

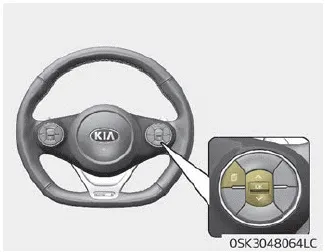

LCD Display Control
The LCD display modes can be changed by using the control buttons.
1.
: MODE button for changing modes
2.
/ : MOVE switch for changing
items
3.
: SELECT/RESET button for setting
or resetting the selected item
- LCD display modes. User settings mode
- Trip information (trip computer)
- Service mode
- LCD display messages
Automatic transmission shift indicator This indicator displays which automatic transmission shift lever is selected. Park : P Reverse : R Neutral : N Drive : D Sports Mode : 1, 2, 3, 4, 5, 6 Manual transmission shift indicator This indicator informs which gear is desired while driving to save fuel.
Trip computer mode The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.
Other information:
Kia Soul (SK3) 2020-2025 Owners Manual: Side repeater lamp (LED type) bulb replacement
If the side repeater lamp (LED), does not operate, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner. The LED lamps cannot be replaced as a single unit because it is an integrated unit.
Kia Soul (SK3) 2020-2025 Owners Manual: Side repeater lamp (Bulb type) bulb replacement
1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out. 2. Disconnect the bulb electrical connector. 3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with the slots on the lens part.
