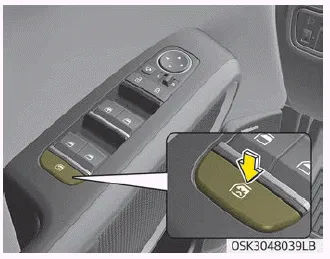

The driver can disable the power window switches on the rear passengers’ doors by pressing the power window lock button to the lock position (pressed).
When the power window lock button is pressed :
CAUTION
WARNING
Windows
Type A To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (5). Type B - Auto down window (if equipped) Pressing the power window switch momentarily to the second detent position (6) completely lowers the window even when the switch is released.
Opening the hood Pull the release lever to unlatch the hood. The hood should pop open slightly. WARNING Open the hood after turning off the engine on a flat surface, shifting the shift lever to the P (Park) position for Automatic Transmission/Dual Clutch Transmission/Intelligent Variable Transmission and to the 1st (First) gear or R (Reverse) for Manual Transmission, and setting the parking brake.
❈ The actual Jack label in the vehicle may differ from the illustration. For more detailed specifications, refer to the label attached to the jack. 1. Model Name 2. Maximum allowable load 3. When using the jack, set your parking brake. 4. When using the jack, stop the engine.
1. Open the tailgate. 2. Remove the service cover. (Loosen the lamp assembly retaining screws and remove the lamp assembly from the body of the vehicle for back-up lamp) 3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
