Kia Soul: Driving your vehicle / Forward collision-avoidance assist-lane-change oncoming function (if FCA equipped)

Kia Soul (SK3) 2020-2023 Owners Manual / Driving your vehicle / Forward collision-avoidance assist-lane-change oncoming function (if FCA equipped)

Forward Collision-Avoidance Assist- Lane-Change Oncoming function detects the oncoming vehicle with a front view camera at the front wihdshield. And it assists the driver’s steering to help avoiding the collision to oncoming vehicle and keeping the vehicle in the lanes, when the vehicle drives over the centerline.

WARNING

Function operation

Driver can activate(or deactivate) the function from the User Settings mode: 'User Settings Driver assistance Forward Collision-Avoidance Assist (FCA)’ For further details, refer to “System setting” on page 6-57.

Warning message and function control

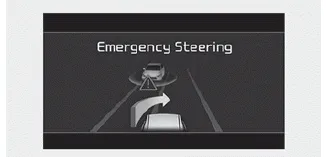

Kia Soul. Forward collision-avoidance assist-lane-change oncoming function (if FCA equipped)

- After FCA is on, vehicle speed is over 60 km/h (37 mph) and if the vehicle across the centerline even though the oncoming vehicle approacing, this warning message appears on the LCD display with audible warning.
- Additionally, provides steering assist to return vehicle back into lanes.

WARNING

Limitations

LKA system function change
The driver can change LKA to Lane Departure Warning (LDW) or change LKA mode from the User Settings Mode on the LCD display. Lane keeping assist LKA mode guides the driver to keep the vehicle within the ...

Blind-Spot Collision Warning (BCW) system
Blind-Spot Collision Warning (BCW) system uses a radar sensor to alert the driver while driving. It senses the rear side territory of the vehicle and provides information to the driver. - Blind Spot Area ...
