Kia Soul (SK3): Light bulbs / High mounted stop lamp (bulb type) bulb replacement

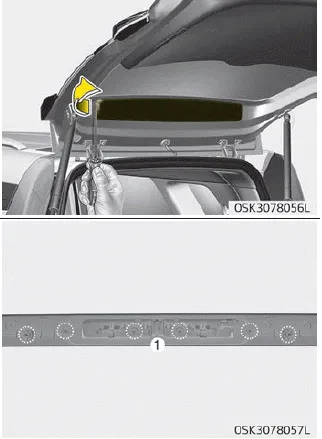

1. Open the tailgate.
2. Remove the cover.
3. Loosen the retaining bolts and remove the hose (1).

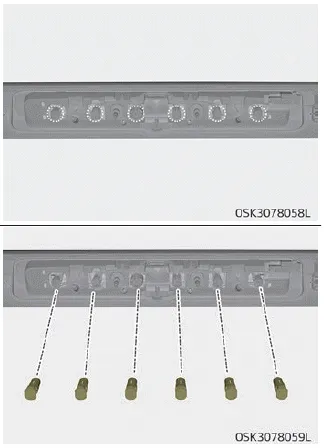

4. Pull out the module from the high mounted stop lamp assembly by pulling both clips.
5. Replace the bulbs by pulling it out.
6. Reinstall in the reverse order.
If the high mounted stop lamp (LED) (1), does not operate, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
1. Remove the lamp assembly by using a flat-blade screwdriver. 2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
