Kia Soul (SK3): Light bulbs / Light bulb position (Rear)

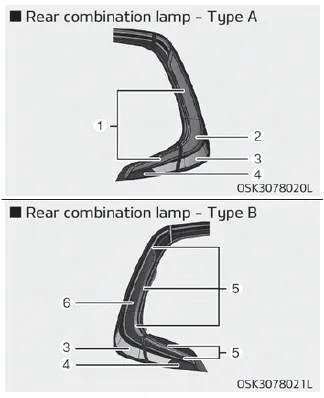

1. Tail lamp (Bulb type)
2. Tail and stop lamp (Bulb type)
3. Rear turn signal lamp (Bulb type)
4. Back-up lamp (Bulb type)
5. Tail lamp (LED type)
6. Stop lamp (LED type)

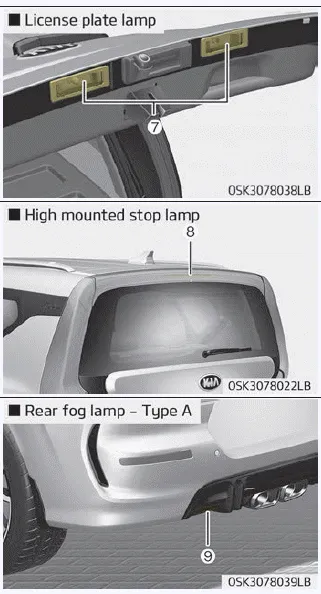

7. License plate lamp (Bulb type)
8. High mounted stop lamp (Bulb or LED type)

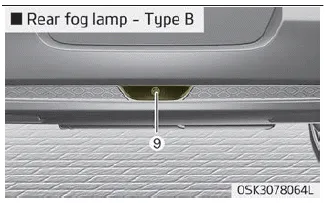

9. Rear For lamp (Bulb type)
1. Front turn signal lamp (Bulb Type) 2. Headlamp (Low/High) 3. Position lamp/Daytime running lamp (Bulb Type) 4. Front turn signal lamp (LED Type) 5.
1. Side repeater lamp (LED type) 2. Side repeater lamp (bulb type)
Other information:
Kia Soul (SK3) 2020-2025 Owners Manual: Bulb replacement precaution
Please prepare bulbs with appropriate standards in case of emergencies (Refer to “Bulb wattage” on page 9-07 for further information). When changing bulbs and sorts, first turn off the engine at a safe place, firmly apply the side brake and take out the battery's negative (-) terminal.
Kia Soul (SK3) 2020-2025 Owners Manual: Stop/tail and turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type A)
1. Open the tailgate. 2. Loosen the lamp assembly retaining screws with a screwdriver. 3. Remove the rear combination lamp assembly from the body of the vehicle. 4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
