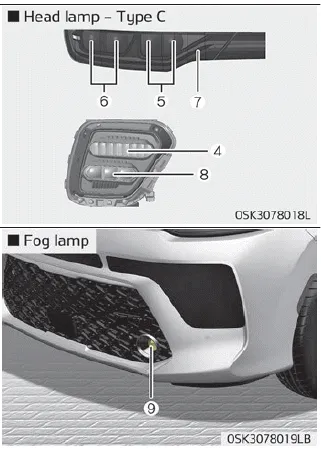

Kia Soul (SK3): Light bulbs / Light bulb position (Front)
1. Front turn signal lamp (Bulb Type)
2. Headlamp (Low/High)
3. Position lamp/Daytime running lamp (Bulb Type)
4. Front turn signal lamp (LED Type)
5. Headlamp (LED)/Sub Low
6. Headlamp (LED) (Low)
7. Position lamp/Daytime running lamp (LED Type)
8. Front fog lamp (LED Type)
9. Front fog lamp (Bulb Type)
Please prepare bulbs with appropriate standards in case of emergencies (Refer to “Bulb wattage” on page 9-07 for further information). When changing bulbs and sorts, first turn off the engine at a safe place, firmly apply the side brake and take out the battery's negative (-) terminal.
1. Tail lamp (Bulb type) 2. Tail and stop lamp (Bulb type) 3. Rear turn signal lamp (Bulb type) 4. Back-up lamp (Bulb type) 5. Tail lamp (LED type) 6.
