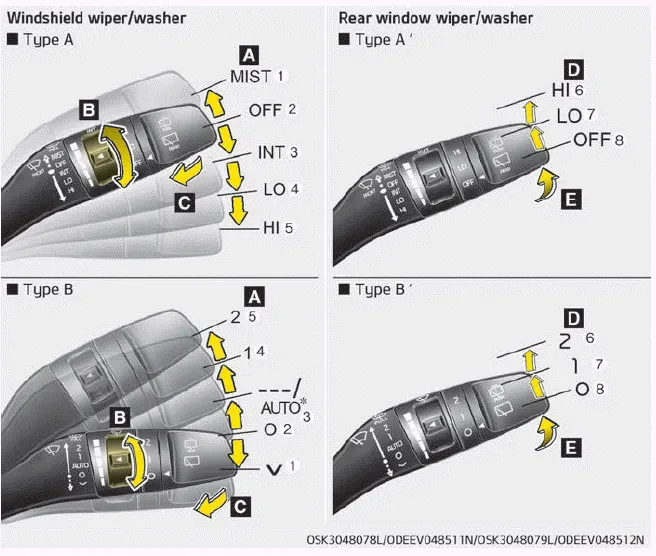

A: Wiper speed control (front)
1. MIST / ˅ – Single wipe
2. OFF / O – Off
3. INT / --- – Intermittent wipe
AUTO* – Auto control wipe
4. LO / 1 – Low wiper speed
5. HI / 2 – High wiper speed
B: Intermittent control wipe time adjustment
C : Wash with brief wipes (front) *
D : Rear wiper/washer control *
6. HI / 2 – Continuous wipe
7. LO / 1 – Intermittent wipe*
8. OFF / O – Off
E : Wash with brief wipes (rear)
High Beam Assist is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions.
Operates as follows when the ignition switch is turned ON. 1. MIST/˅: For a single wiping cycle, move the lever to this (MIST/˅ ) position and release it.
Your vehicle has a maintenance-free, calcium-based battery. If the battery becomes discharged in a short time (because, for example, the headlights or interior lights were left on while the vehicle was not in use), recharge it by slow charging (trickle) for 10 hours.
Exterior general caution It is very important to follow the label directions when using any chemical cleaner or polish. Read all warning and caution statements that appear on the label. Finish maintenance Washing To help protect your vehicle’s finish from rust and deterioration, wash it thoroughly and frequently at least once a month with
