Kia Soul (SK3): Your vehicle at a glance

Kia Soul (SK3) 2020-2025 Owners Manual / Your vehicle at a glance

Exterior overview

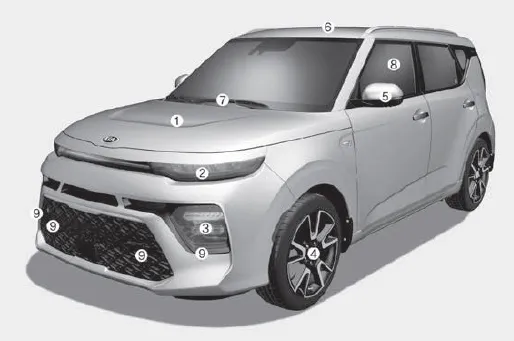

Kia Soul. Exterior overview

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)
4. Wheel and tire (Maintenance)
Wheel and tire (Specification)
5. Outside rearview mirror
6. Sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
8. Windows
9. Front ultrasonic sensor

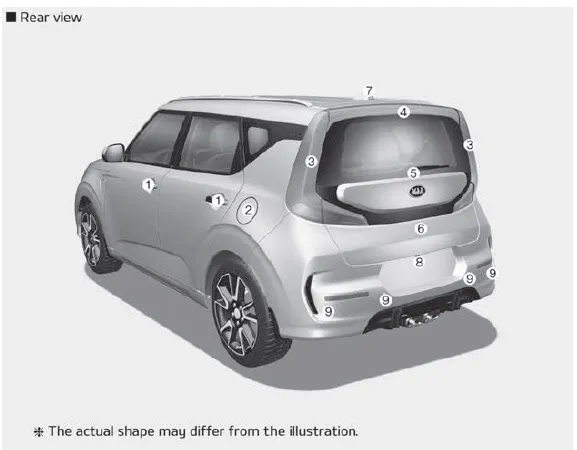

Kia Soul. Exterior overview

1. Door locks
2. Fuel filler door
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Rear window wiper blade
6. Tailgate
7. Antenna
8. Rear view camera
9. Rear ultrasonic sensor

Interior overview

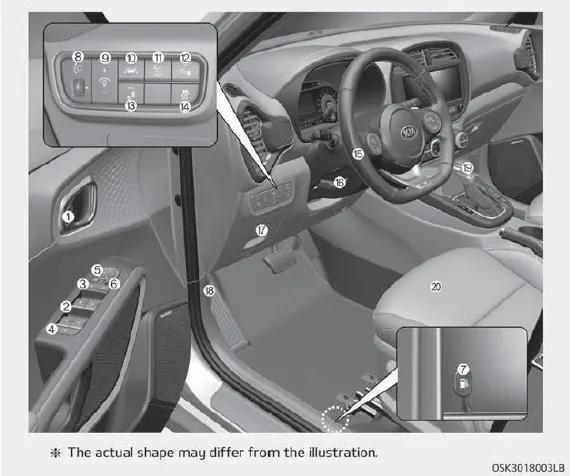

Kia Soul. Interior overview

1. Inside door handle
2. Power window switch
3. Central Door lock/unlock switch
4. Power window lock switch
5. Outside rearview mirror control
6. Outside rearview mirror folding
7. Fuel filler door open lever
8. Headlight leveling device
9. Instrument panel illumination control switch
10. Lane Keeping Assist (LKA) system On/Off button
11. Head-Up Display shutter On/Off button
12. Parking Distance warning ON/Off button
13. Blind-Spot Collision Warning (BCW) system On/Off button
14. ESC Off button
15. Steering wheel
16. Tilt and telescopic steering control lever
17. Inner fuse panel
18. Hood release lever
19. Transaxle shift lever
20. Seat

Instrument panel overview

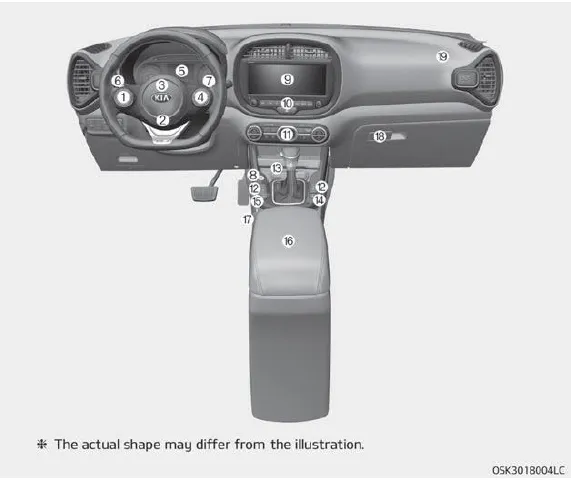

Kia Soul. Instrument panel overview

1. Audio remote control buttons
2. Driver’s front air bag
3. Horn
4. Cruise control button
5. Instrument cluster
6. Lighting control lever
7. Wiper and washer control lever
8. Ignition switch or Engine start/stop button
9. Audio
10. Hazard warning flasher
11. Climate control system
12. Front seat warmer
Seat air ventilation
13. Power outlet
14. Heated steering wheel On/Off button
15. Drive mode button
16. Center console storage box
17. Parking brake
18. Glove box
19. Passenger’s front air bag

Engine compartment

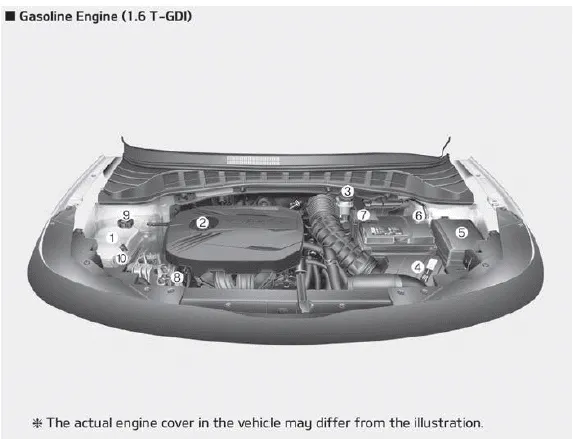

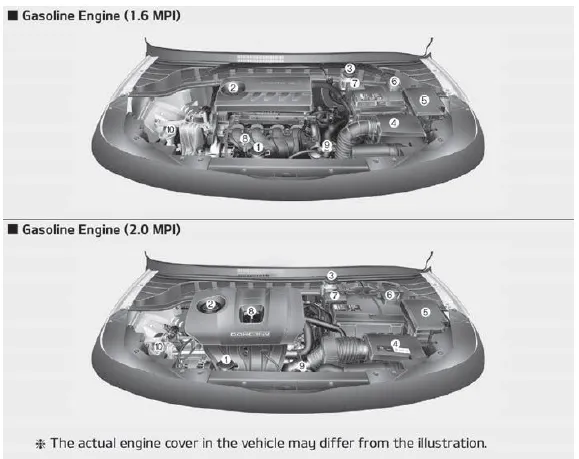

Kia Soul. Engine compartment

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir

Kia Soul. Engine compartment
