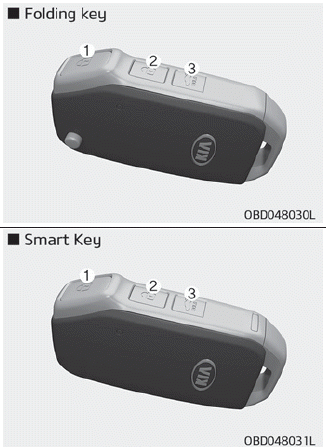

Lock (1)
All doors are locked if the lock button is pressed while all doors are closed. The hazard warning lights will blink once to indicate that all doors are locked.
However, if any door, engine hood or tailgate remains open, the hazard warning lights will not operate. If all doors, engine hood and tailgate are closed after the lock button is pressed, the hazard warning lights will blink once.
Unlock (2)
All doors are unlocked if the unlock button is pressed.
The hazard warning lights will blink twice to indicate that all doors are unlocked.
After pressing this button, the doors will lock automatically unless you open any door within 30 seconds.
Tailgate unlock (3) (if equipped)
The tailgate is unlocked if the button is pressed for more than 1 second.
The hazard warning lights will blink twice to indicate that the tailgate is unlocked.
However, after pressing this button, the tailgate will lock automatically unless you open the tailgate within 30 seconds.
Also, once the tailgate is opened and then closed, the tailgate will lock automatically.
With the tailgate locked and the smart key in your possession, press the tailgate open switch. Then, the tailgate will be opened.
❈ The word “HOLD” is written on the button to inform you that you must press and hold the button for 1 second.
NOTICE The transmitter will not work if any of the following occurs: The ignition key is in the ignition switch. You exceed the operating distance limit (about 10 m [30 feet]).
We recommend that the following lists are vehicle checks and inspections that should be performed by the owner or an authorized Kia dealer at the frequencies indicated to help ensure safe, dependable operation of your vehicle. If you have any question, consult a professional workshop.
Dimensions.Engine Dimensions Engine Gross vehicle weight. Luggage volume. Bulb wattage Gross vehicle weight Luggage volume Min: Behind rear seat to upper edge of the seat back. Max: Behind front seat to roof. Bulb wattage Tires and wheels CAUTION When replacing tires, use the same size originally supplied with the vehicle.
