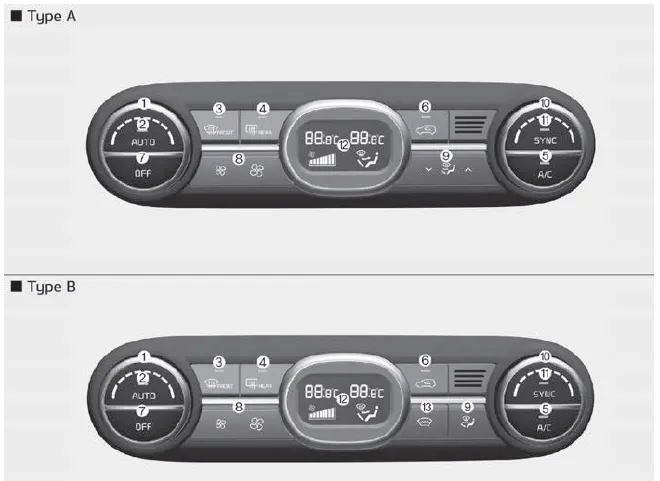

Kia Soul (SK3): Features of your vehicle / Automatic climate control system
1. Driver`s temperature control knob
2. AUTO (automatic control) button
3. Front windshield defroster button
4. Rear window defroster button
5. Air conditioning button
6. Air intake control button
7. Blower OFF button
8. Fan speed control button
9. Mode selection button
10. Passenger`s temperature control knob
11. SYNC button
12. A/C display
13. Front glass heater
CAUTION
Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
- Automatic heating and air conditioning
- Manual heating and air conditioning
- Front glass heater
- System operation
- Climate control air filter
- Air conditioning refrigerant label
- Checking the amount of air conditioner refrigerant and compressor lubricant
When the amount of refrigerant is low, the performance of the air conditioning is reduced. Overfilling also has a bad influence on the air conditioning system.
1. Push the AUTO button. The modes, fan speeds, air intake and air-conditioning will be controlled automatically according to the temperature setting.
