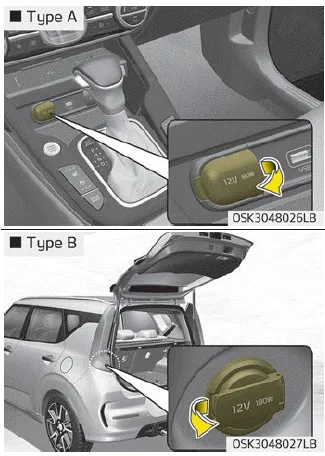

Kia Soul (SK3): Interior features / Power outlet

The power outlet is designed to provide power for mobile telephones or other
devices designed to operate with vehicle electrical systems. The devices should
draw less than 10 amps with the engine running.
CAUTION
- Use the power outlet only when the engine is running and remove the
accessory plug after use. Using the accessory plug for prolonged periods of
time with the engine off could cause the battery to discharge.
- Only use 12V electric accessories which are less than 10A in electric
capacity.
- Adjust the air-conditioner or heater to the lowest operating level
when using the power outlet.
- Close the cover when not in use.
- Some electronic devices can cause electronic interference when plugged
into a vehicle’s power outlet. These devices may cause excessive audio static
and malfunctions in other electronic systems or devices used in your vehicle.
- Using electrical products which exceed the limited capacity might cause
heating to the power outlet and wiring that could lead to an electrical breakdown.
- Always make sure the electrical part is firmly plugged into the power
outlet. Incomplete plugging may cause electrical breakdown.
- Electrical products with a built-in battery might cause current flow,
which could lead to malfunction of the electric/electronic device in your vehicle.
Only use electrical products which include reverse current prevention.
WARNING
Do not put a finger or a foreign element (pin, etc.) into a power outlet and
do not touch with a wet hand. You may get an electric shock.
The temperature setting of the seat changes according to the switch position.
• If you want to warm your seat cushion, press the switch (red color).
The USB car charger allows drivers to charge their digital devices like smartphone,
and PC tablets. Connect the cable to the USB port, charging will begin.
Other information:
❈ Left side : Normal, Right side : Blown
A vehicle’s electrical system is protected from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel
bolster, the others in the engine compartment near the battery.
1. Remove the lamp assembly by using a flat-blade screwdriver.
2. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with the slots on the assembly.
3. Remove the bulb from bulb-socket by pulling it out.
